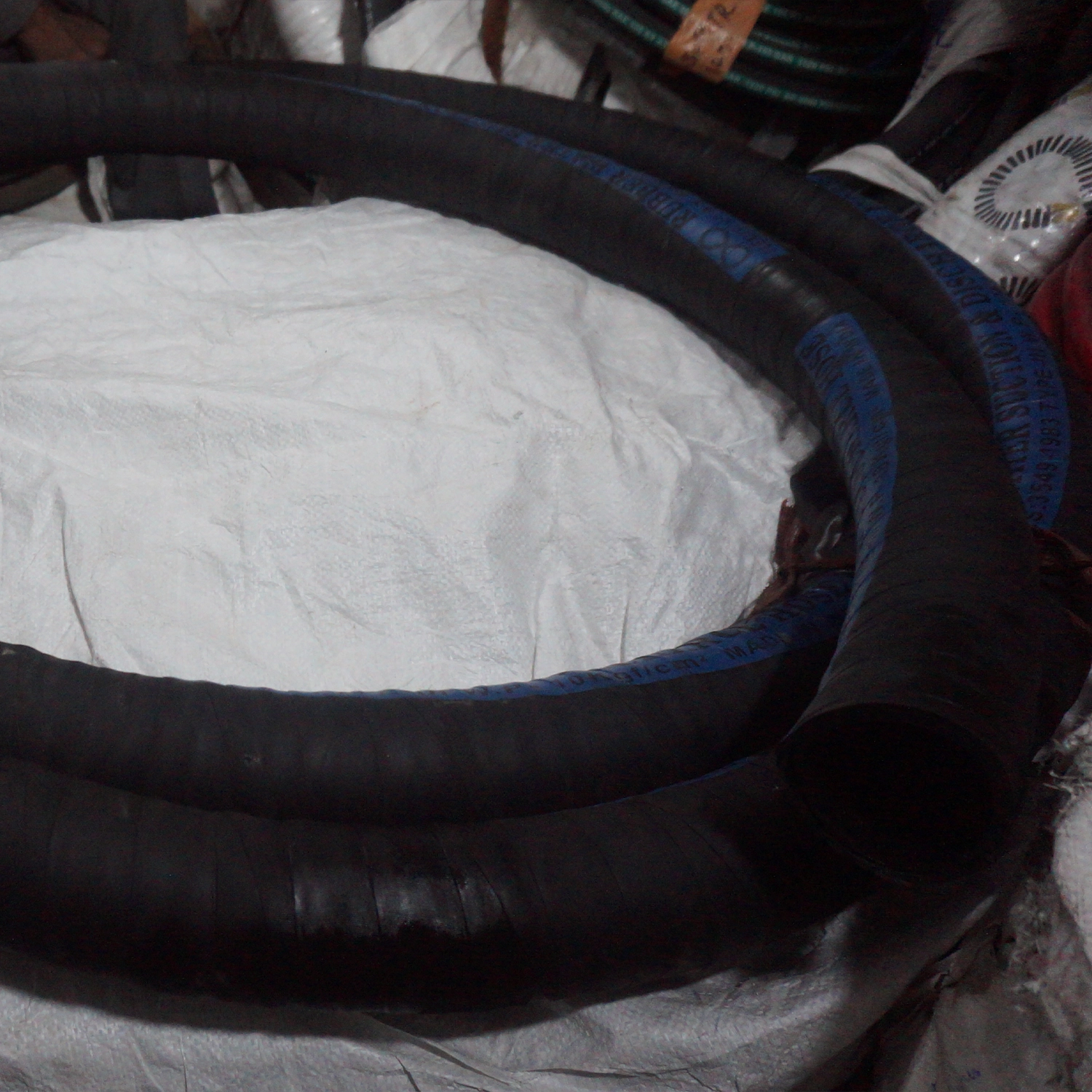

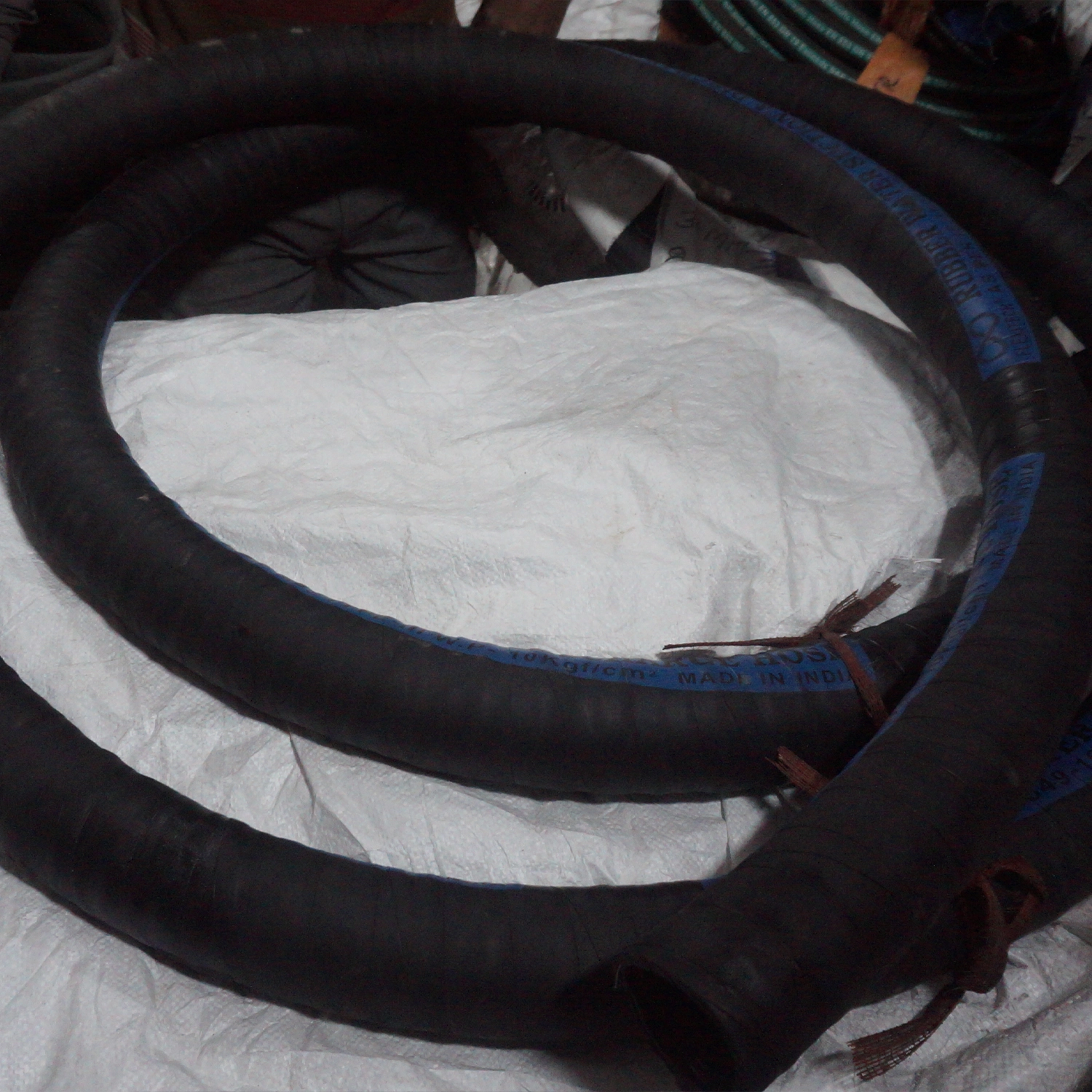

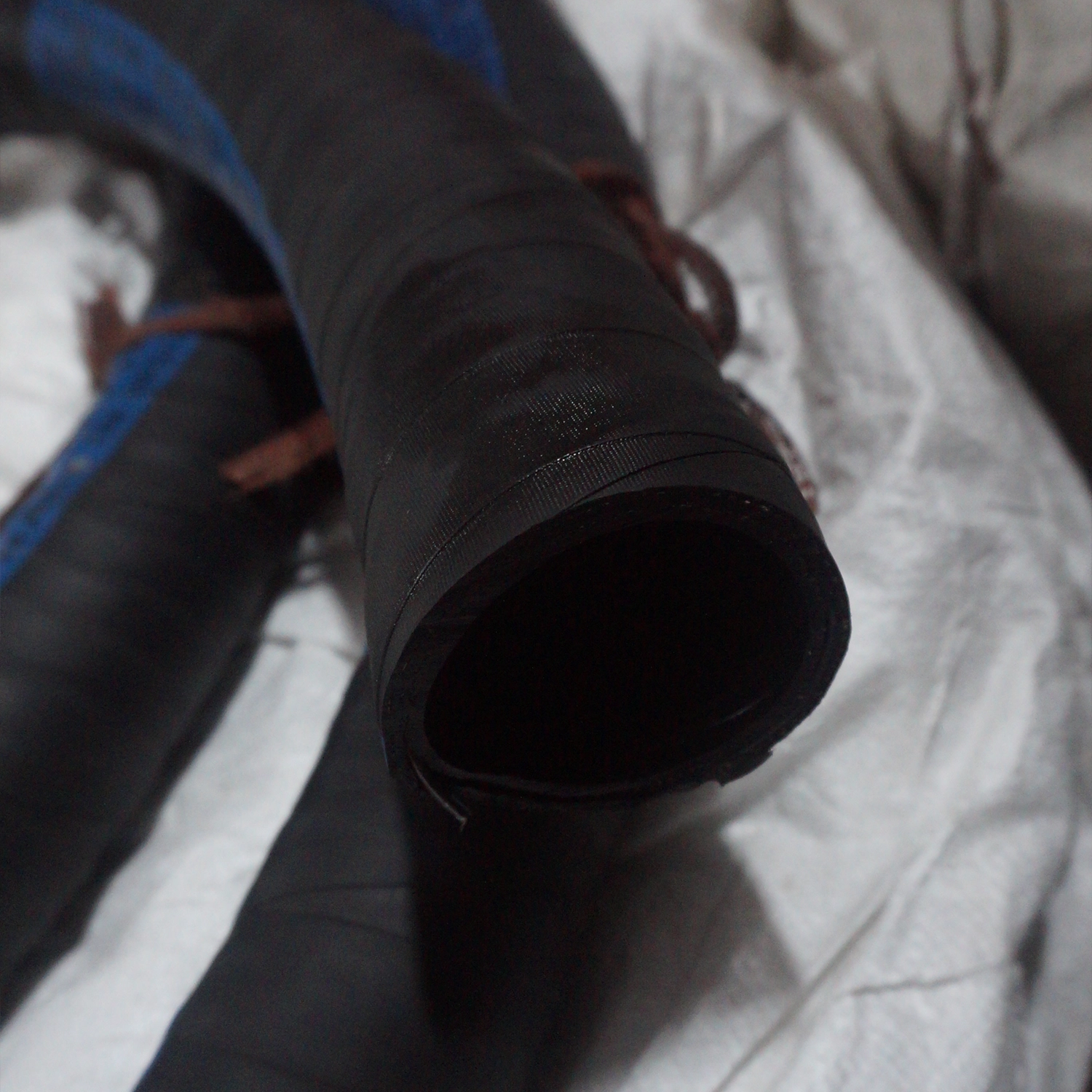

Rubber Oil Suction & Discharge Hose
Application
For suction, delivery and return hose for oil, gasoline, diesel and other fuels.
Also handles up to 50% aromatic hydrocarbons. Vacuum: 500mm of Hg.
Type: The hoses are suitable for working pressure of 7 kg/cm²g, 10 kg/cm²g and 15 kg/cm²g.
Construction
-
Tube
Uniform thickness seamless synthetic rubber inner tube, resistant to oil, gasoline, diesel -
Reinforcement
Layers of high synthetic textile impregnated with elastomeric material with steel wire helix -
Cover
Black color, oil weather & abrasion resistant synthetic rubber with anti-static characteristic with red strip. Available in either plain or corrugated -
Electric Conductivity
Anti-static copper wire -
Temperature
42°C to 82°C continuous service
Note: Sizes available from 1.5″ to 12″
